1083-HK transformer | 90-300nH | Coilcraft coil

Brand: Coilcraft

Manufacturer code: 1083-HK

Ordering code: CI-8

Inductance: 90-120nH PRI / 200-300nH SEC

PCB pattern size: 6mm, square (2mm grid, between pins)

No. of terminals: 7 ( 5 & 7 are metal case pins)

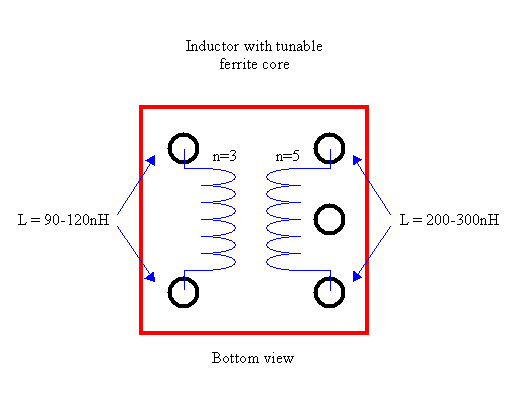

No. of turns: 3 turns PRI, 5 turns SEC (see drawing below)

Ferrite core color: black

Q factor: 150-200

Screening can material: Cu, nickel plated
