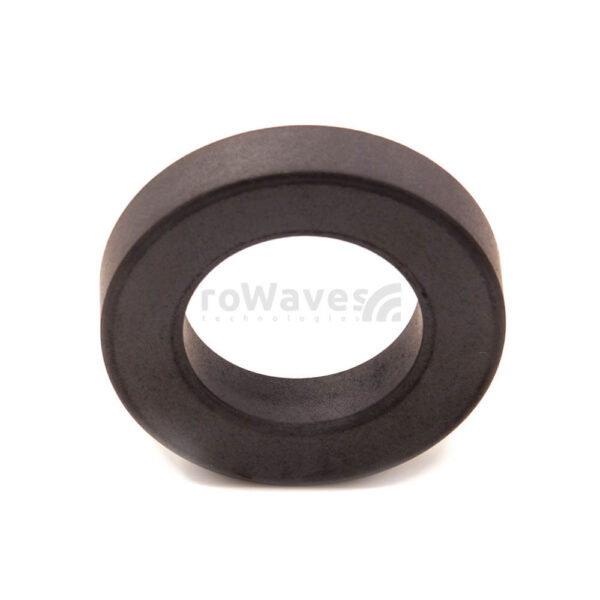

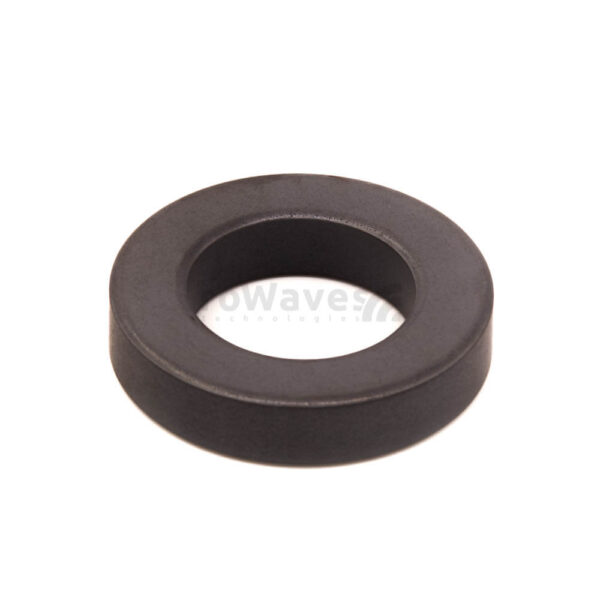

FT240-61 ferrite toroid core

Colour code: black/grey
Manufacturer code: 5961003801
Ordering code: FT-14
Marking code: 1 x black paint side-stripe
Manufacturer part no.: FT240-61
Material no.: 61
AL: 170nH
Permeability (μi): 125
Frequency range: 0.2 – 500MHz (wideband transformer, depends on the application)
RF max. power: 1000-1500W (0.5-50MHz broadband transformer)
Temperature stability.: 1000ppm/°C
Ext. diameter: 61mm
Int. diameter: 35.5mm
Height: 12.7mm

23,60 EUR (excl. VAT)

6 in stock

Usable frequency ranges, depending on the application:

broadband transformers: 20 – 500 MHz

high Q inductors: 0.2 – 10 MHz

RFI / EMI / CMC suppression: over 20 MHz

Technical data-sheet:

Weight 101 g
Dimensions 6,1 × 3,55 × 1,27 cm
