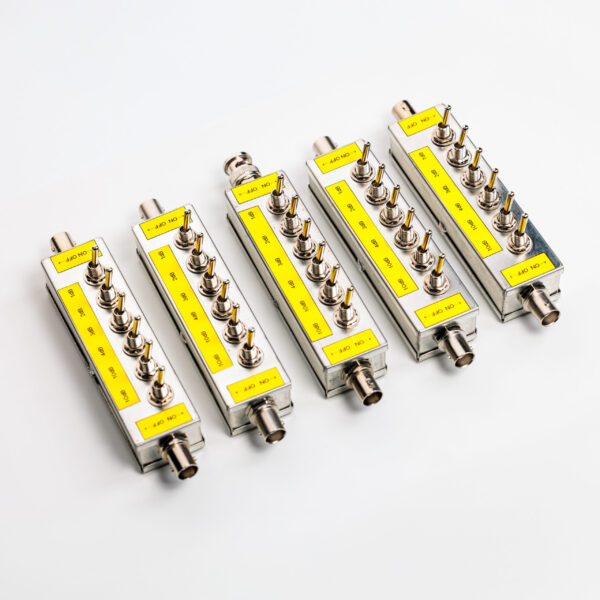

RMAT-1001 | 0 to 30dB Toggle Switch Step Attenuator 50Ohm
0 to 30dB Toggle Switch Step Attenuator designed for laboratory measurements and general testing purposes. Equipped with 2 x BNC-F, BNC-F/BNC-M, 2 x SMA-F or SMA-F/SMA-M connectors, there are 4 variants to choose from. This RF attenuator is manufactured to precisely meet the RF industry requirements, with quality connectors and toggle switches. Minimum attenuation is 0dB, maximum attenuation is 30dB in 6 steps. Maximum VSWR is 1.5:1 @ 450MHz/9dB selected attenuation (4+3+2dB). Maximum rated power is 2W.
30dB Toggle Switch Step Attenuator Key Specifications:
| Download Datasheet |  |
| Download Mechanical Drawing | |
| Download Product Flyer | |
| Manufacturer | rowaves® |
| rowaves® SKU | RMAT-1001XXX |
| Design | step attenuator |
| Maximum Frequency | ~500MHz |
| Impedance | 50 Ohms |
| Maximum Power | 2W |
| VSWR Maximum | 1.5:1 |
| Minimum Attenuation | 0dB |
| Maximum Attenuation | 30dB |
Options (choose before adding to cart):
RMAT-1001BMF – connector 1: BNC-male | connector 2: BNC-female
RMAT-1001BFF – connector 1: BNC-female | connector 2: BNC-female
RMAT-1001SMF – connector 1: SMA-male | connector 2: SMA-female
RMAT-1001SFF – connector 1: SMA-female | connector 2: SMA-female
392,51 RON (excl. VAT)
| Weight | 130 g |
|---|---|
| Dimensions | 11 × 3 × 3 cm |
