PAB-2 delivers +30dBm output power with 15dB typical gain (10MHz–1GHz), excellent return loss (>15dB), and high linearity, featuring a typical IP3 of +46.1dBm and P1dB of +30.4dBm at 1GHz. Read HERE a comprehensive engineering report (ER25-03) about the design and manufacturing of this amplifier.
Pricing & inventory
IN STOCK / RFQ for price
General specifications
| Product SKU | PAB-2 |
| Product type | simple |
| Parts status | active |
| Packaging | individual |
| Weight | 340/0.75 ±5 g/lbs |
| Length | 75/ 2.95 ±1 mm/inch |
| Width | 67.4/ 3.65 ±1 mm / in |
| Height | 56.9/ 3.24 ±0.5 mm / in |
| Dimmensions | 75 x 67.4 x 56.9 mm |
| Package / enclosure | connectorized module |
Technical specifications
| Design | class-A, gain block linear amplifier |
| Wideband | 10MHz to 2.7GHz |
| IN/OUT Impedance | 50 Ohms |
| Maximum Power | +30dBm (P1dB @ 1GHz) |
| Gain | 15dB typ. (10MHz to 1GHz) |
| Input Return Loss | >15dB |
| IP3 | +46dBm @ 1GHz |
| Noise Figure | 3...3,5dB (10MHz to 1GHz) |
Compliance & regulatory
| MSL | n/a |
| REACH status | REACH unaffected |
| ECCN | EAR99 |
| HTS / US | 8543.70.9860 |
| Tax status | taxable |
| Country of origin | Romania |

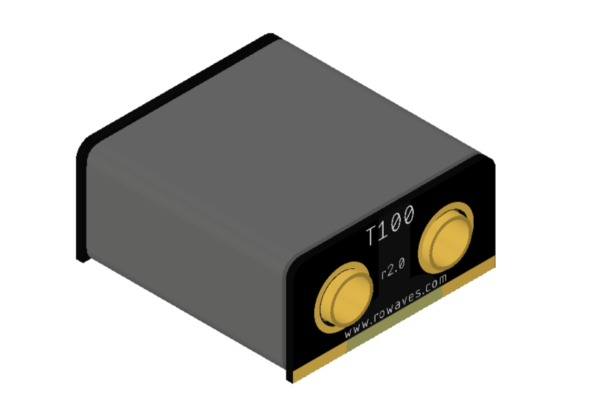

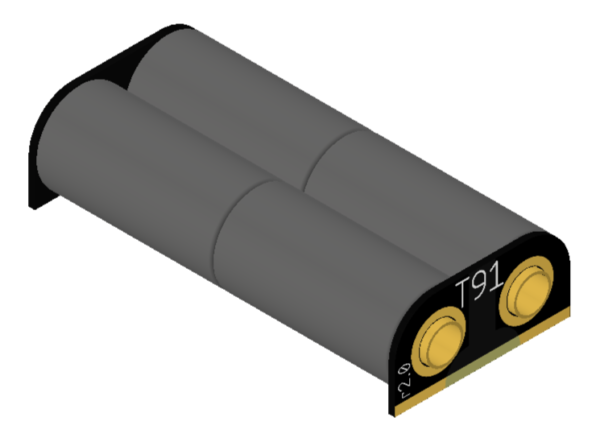

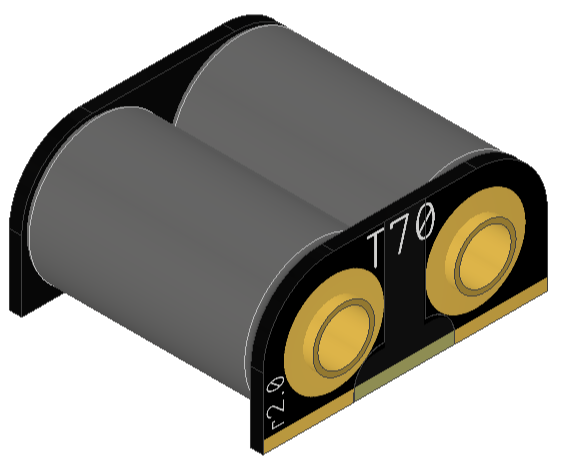

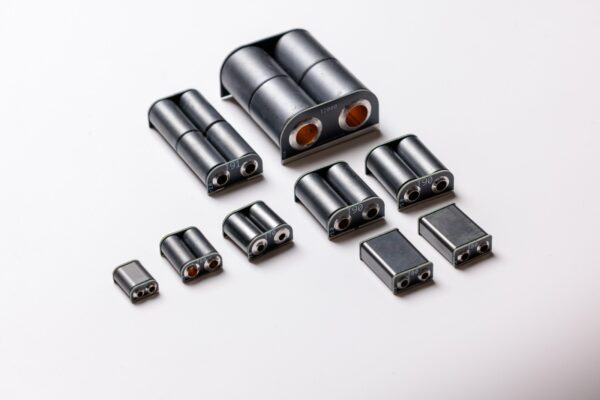

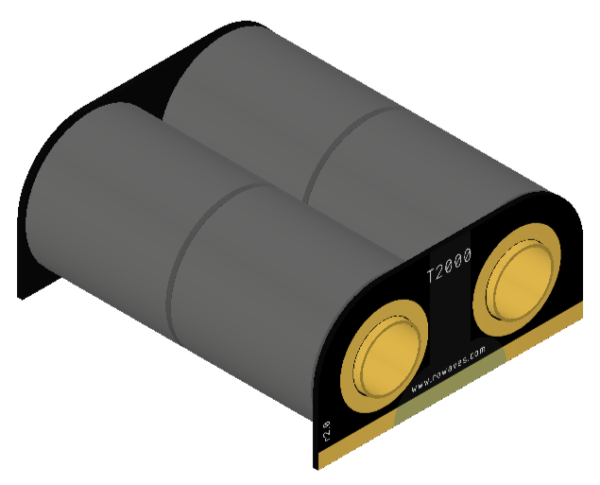

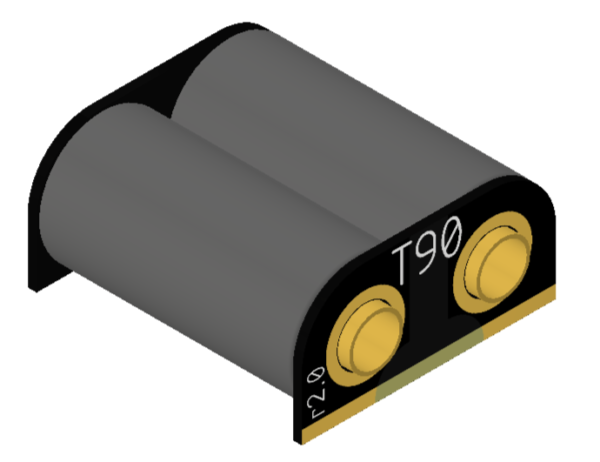

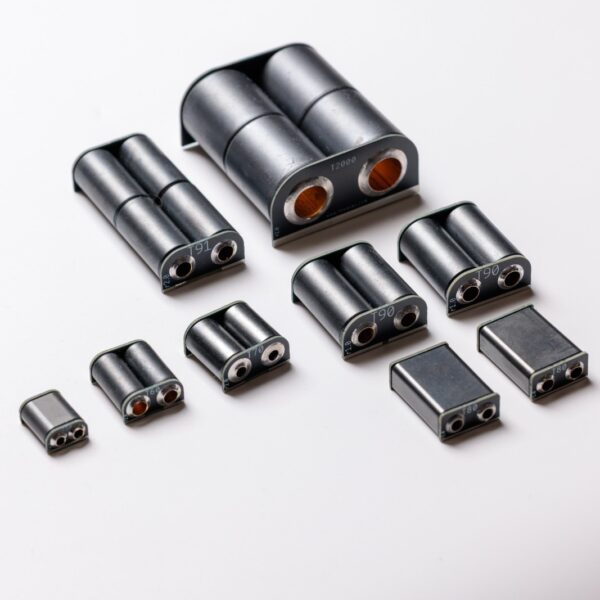

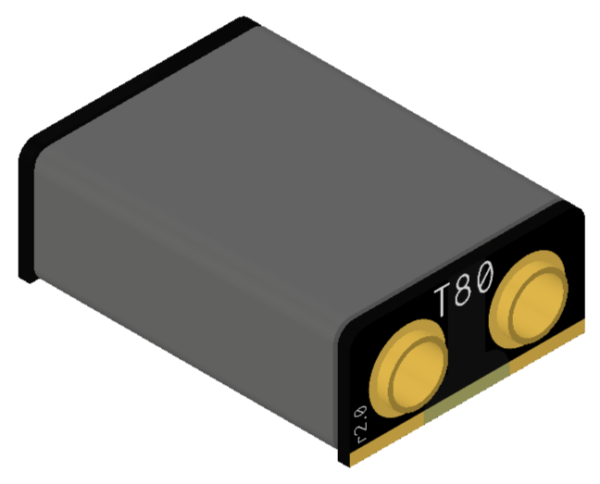

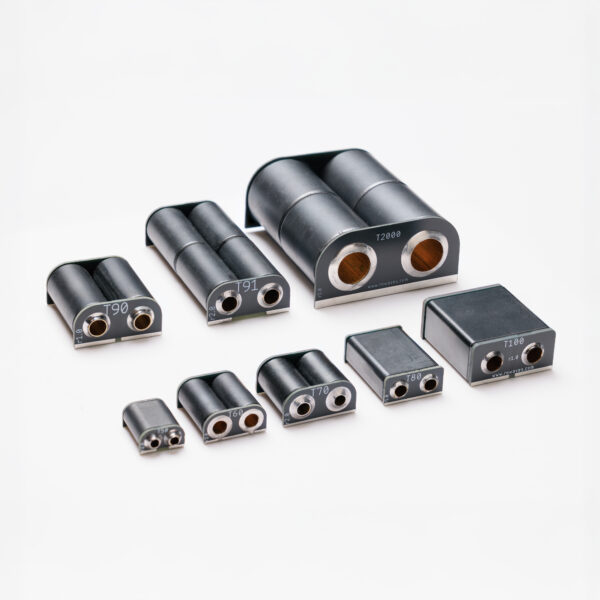

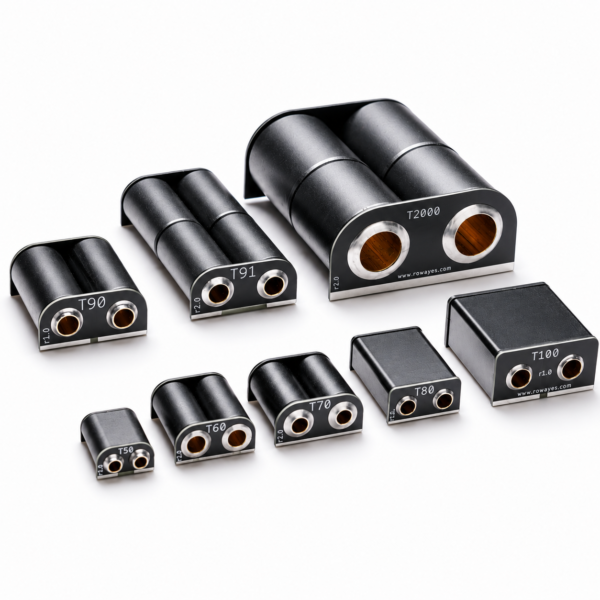

| Model (ferrite based) | PEP Power Capability (as power transformer) | Frequency Domain (as power transformer) | Available Impedance Ratio | Initial permeability | CAD model DOWNLOAD | |
|---|---|---|---|---|---|---|

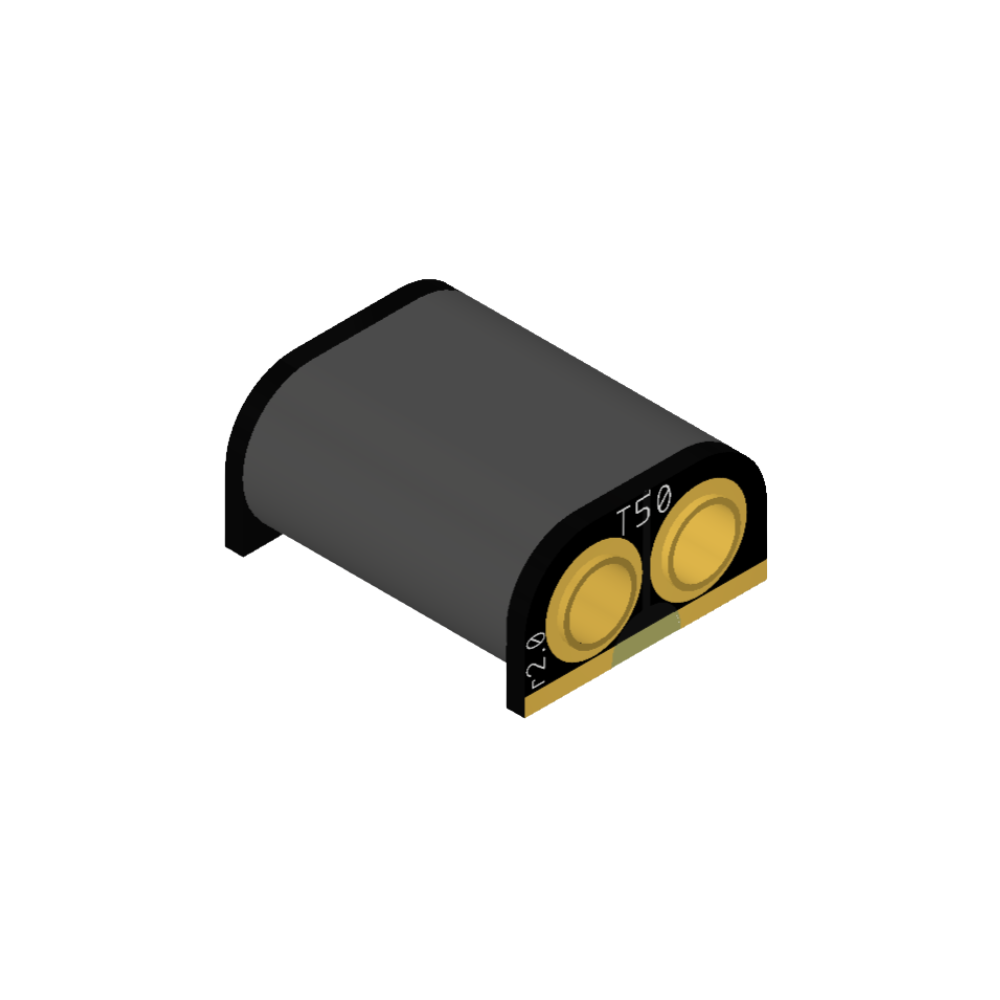

| T5043 | 5W | 1 - 30MHz | 1:1/1:4/1:9/1:16/1:25 | μi: 800 | n/a yet | |
| T5061 | 5W | 5 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | μi: 125 | n/a yet | |
| T5073 | 5W | 0.1 - 20MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |

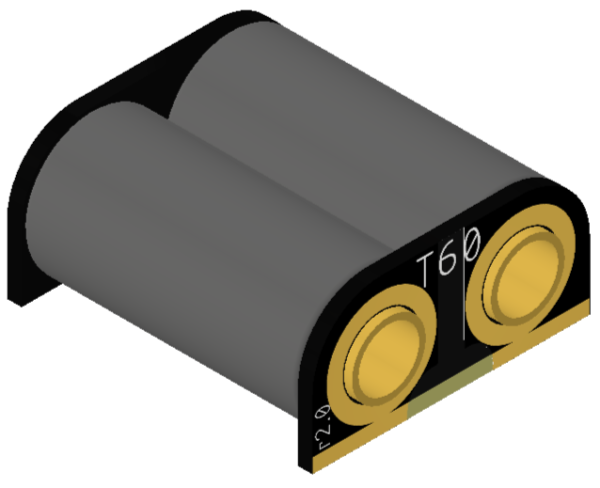

| T60 | 15-20W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T70 | 25 - 30W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T8043 | 35-40W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T90 | 45-60W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T91 | 150-200W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T100 | 50W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet | |
| T2000 | 1500-2000W | 2 - 50MHz | 1:1/1:4/1:9/1:16/1:25 | 800 μi | n/a yet |
