ULTA-10 | 0.25-220MHz Ultra Linear Laboratory Amplifier

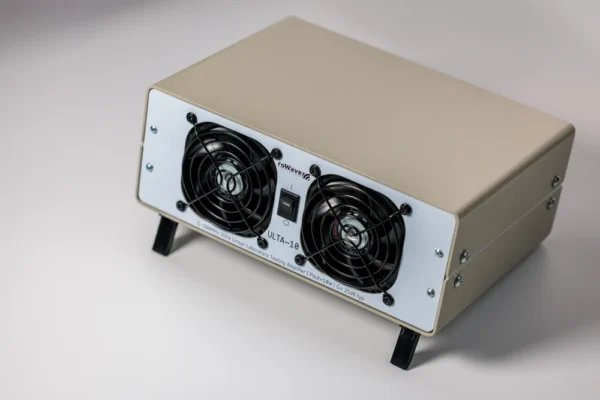

ULTA-10 is a professional 10W ultra linear class-A broadband amplifier built on latest LDMOS technology, with high gain and wide frequency response, for laboratory grade tests and measurements, with outstanding linear performance such as low harmonics distortion and IMD products. It can be used to measure and describe intermodulation distortion products or harmonics behaviour for medium to high power HF to VHF linear amplifiers (for 500…600w: ULTA-10R3-1, for 800…1500W: ULTA-10R3-2) . Optimised for signal purity not for power consumption, it was designed and built especially to characterise IMD products for SSPA in HF-VHF, where ultra low distortion is needed. Built in a compact rugged case, externally supplied, with enhanced forced-air cooling. Operation over the band is achieved without any band switching or additional filtering. Compatible with most signal generators, frequency synthesisers, sweep generators or other laboratory signal sources. Accurately reproduces waveforms within its power and frequency ranges: AM, FM, CW, SSB etc.

	ULTA-10R1	ULTA-10R2	ULTA-10R3-1	ULTA-10R3-2
Power Switch	n/a	no-LED status	with LED status	with LED status
Power connector	4mm banana	4mm banana	JST 2P	JST 2P
Reversed Prot.	✔️	✔️	✔️	✔️
Fuse protection	❌	❌	✔️	✔️
Improved housing	n/a	❌	✔️	✔️
Improved cooling	❌	❌	✔️	✔️
Operation class			class-A
Typ. Output Power	10W	10W	10W	10W + 10W
Gain			22dB typ.
IMD3			-70dBc typ.
2nd Harmonic			-65dbc typ.
3rd Harmonic			-57dbc typ.
Supply requirements	50Vdc / 3Adc max.	50Vdc / 3Adc max.	50Vdc / 3Adc max.	50Vdc / 6Adc max.
Download Datasheet
Download Mechanical Drawing
Download User Manual (in work...)

OPTIONS:
a) 1pc. of  ULTA-10R1 (1st revision, 1 x ULTA-10 amplifier module, mounted on  heatsink with forced cooling – separate power supply necessary for the FAN)
b) 1pc. of ULTA-10R2 (2nd revision, 1 X ULTA-10 amplifier module inside, complete unit enclosed)
c) ULTA-10R3-1* (3rd revision, 1 x ULTA-10 amplifier modules inside, complete unit enclosed with latest functionalities, enhanced cooling system) – price below & delivery (back order)
 d) ULTA-10R3-2 (3rd revision, 2 x ULTA-10 amplifier modules inside, complete unit enclosed with latest functionalities, enhanced cooling system) – for price, availability & consultancy – PLEASE CONTACT US (especially for companies)!

*it is possible to upgrade later from ULTA-10R3-1(1x10W) to ULTA-10R3-2 (2x10W) on request (for an additional upgrade fee)

AVAILABILITY:
– for ULTA-10R3-1 and R3-2, lead time is usually 14 working days
– complete technical specifications are realeased (Nov. 29th 2024) in the datasheet
