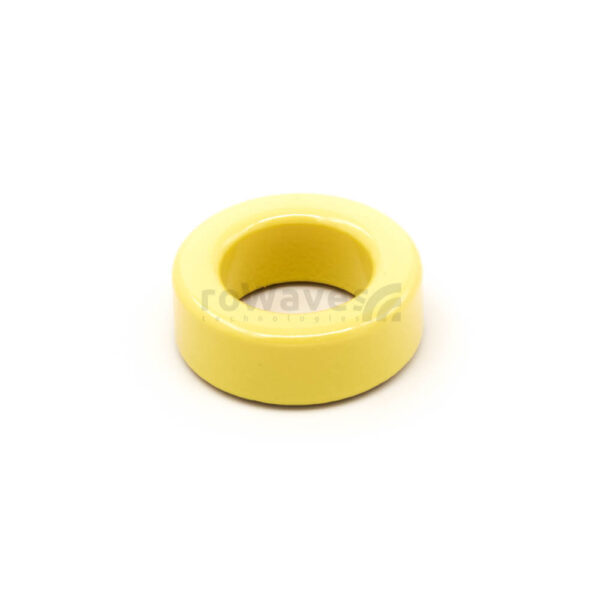

T157-6 iron powder toroid core

ManufacturerWurth Elektronik
roWaves SKUIPT-16
Manufacturer codeT157-6
Color codeyellow/clear
Material number#6
Material mixCarbonyl Iron Mix
Permeability (µi)8
AL115µH / 100T
Usable frequency domain3MHz-40MHz
Max. RF power450W, LPF/BPF, max. 30°C temp. increase
Temperature stability35ppm /°C
Outer diameter (OD)39.9mm / 1.57in
Internal diameter (ID)24.1mm / 0.95in
Height (Ht)14.5mm / 0.57in
View DatasheetAdobe

13,20 EUR (excl. VAT)

8 in stock

– optimal for tuned circuits, coils, medium and high-power BPF and LPF filters, RF transformers etc.

Weight 56 g
Dimensions 4 × 2,41 × 1,45 cm
