BP-01 | 10MHz to 5.5GHz Power Meter, -45 to -15dBm

Original price was: 139,00 EUR.Current price is: 110,00 EUR. (excl. VAT)

4 in stock

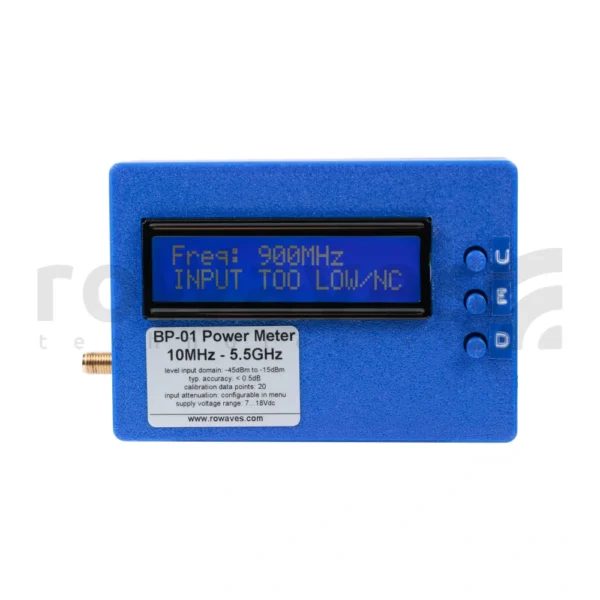

BP-01 | 10MHz to 5.5GHz Power Meter, -45 to -15dBm


The BP-01 is an ultra-portable HF to 5.5GHz designed power meter for both laboratory measurements and hobby applications. Small-size, easy to operate, in a 3D printed quality case. All functions are accesbille via front-menu, with 3 momentary switches (UP/DWN, EN). SMA-F on left-side panel for signal input. Power sensor: AD8317 log-detector inside. Anti-slip pads for easy manipulation. 2 x 16CH screen. DC jack (2.5mm female needed) for 7…18Vdc operation, on right-side panel. The unit is calibrated against professional instruments (SMB100B Rhode & Schwarz).

The new specs and calibration points are listed in table below. It can be used up to 10GHz but it was calibrated from 10MHz to 5.5GHz.

ManufacturerroWaves
roWaves SKUBP-01
Designlog detector
Frequency Interval10MHz...5.5GHz
Input Impedance50Ohm
Calibrated at:-30dBm all freq. ranges
Typ. accuracy0.5dB typ
Input Level-45...-15dBm (no ATT)
Calibration Data Points20
Calibration freq.0.01, 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4, 2.7, 3, 3.3, 3.6, 3.9, 4.2, 4.5, 4.8, 5.1, 5.4, 5.7GHz
Input Attenuationconfigurable in menu
Supply Voltage Range7-18Vdc / 100mAdc
Dimmensions100x70x30mm

Original price was: 139,00 EUR.Current price is: 110,00 EUR. (excl. VAT)

4 in stock

Weight 200 g
Dimensions 10 × 7 × 3 cm
