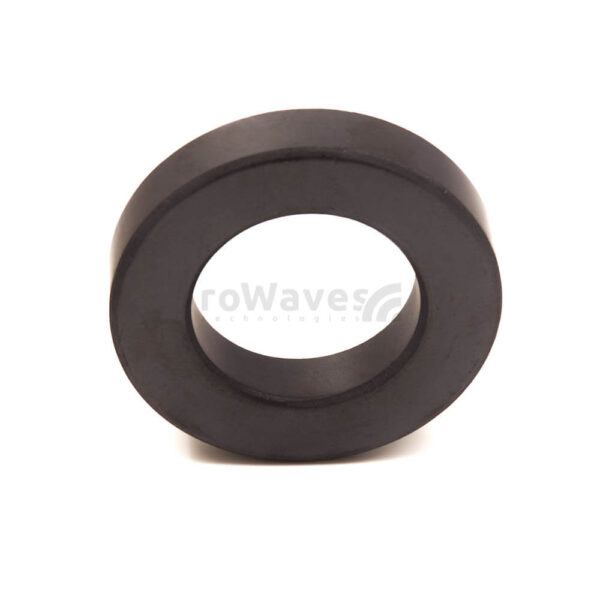

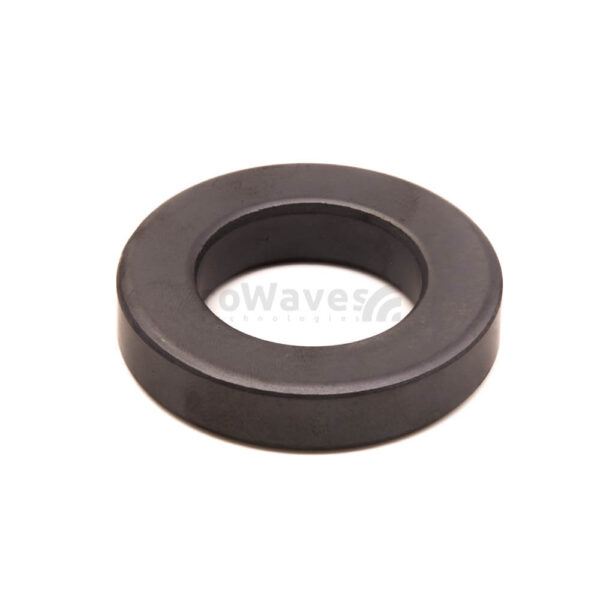

Description
Usable frequency ranges, depending on the application:
broadband transformers: 5 – 400 MHz
high-Q inductors: 0.5 – 30 MHz
RFI / EMI / CMC suppression: 5 – 500 MHz
✔️ common mode shocks (CMC): material 43 it is a very good solution for suppressing common broadband currents in the range of 10 – 600 MHz. Along with the increase no. of turns, the suppression increases, while the max. usable freq. will decrease.
✔️ broadband transformers: excellent impedance transformers can be made in the frequency range from 2 to 50 MHz Typical applications are impedance transformers for EndFed antennas, impedance transformers for OCFD antennas or BalUn 1: 1. Full technical specifications (including catalog description) at “Downloads”.
