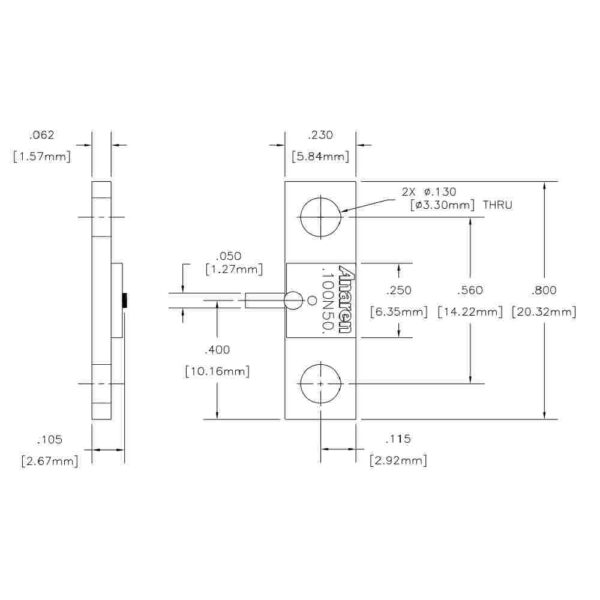

J100N50X4 Anaren 50Ω 100W resistor

Manufacturer
roWaves SKU	DLR-1
Manufacturing code	J100N50X4
Substrate	BeO Ceramic (Beryllium Oxide Ceramic)
Resistive element	Thick Film
Lead/terminals	99% .005” thick pure silver leads (welded)
Cover	alumina ceramic
Mounting flange	copper, nickel plated
Frequency domain	D.C. to 3GHz
Maximum RF power	100W
Impedance	50Ω ± 2%
VSWR	1.25 : 1 typ. for D.C. to 3GHz
Mechanical mounting	half-flange termination
Weight	2.4g
Dimmensions	13 × 6.35 × 3.5mm
View Datasheet

For other power variants (not necessay from the same manufacturer):
     – 250W version: click HERE
     – 450W version: click HERE
     – 800W version: click HERE
