FT240-77 ferrite ferrite toroid

19,62 EUR (excl. VAT)

22 in stock

🔍

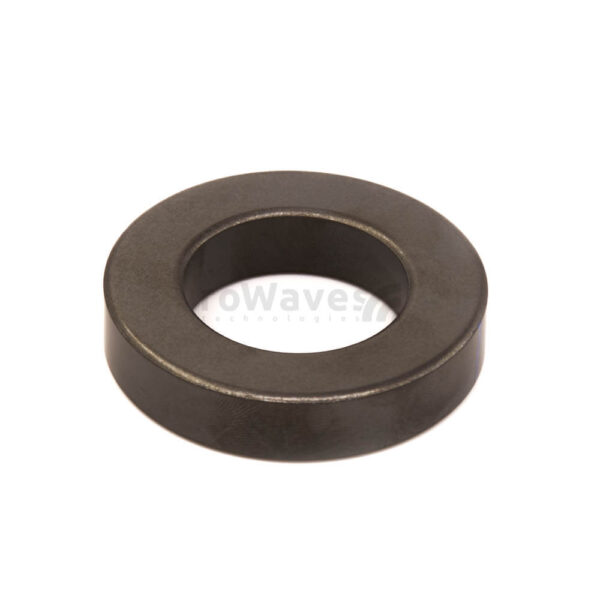

FT240 77 Amidon ferrite toroid 5977003801

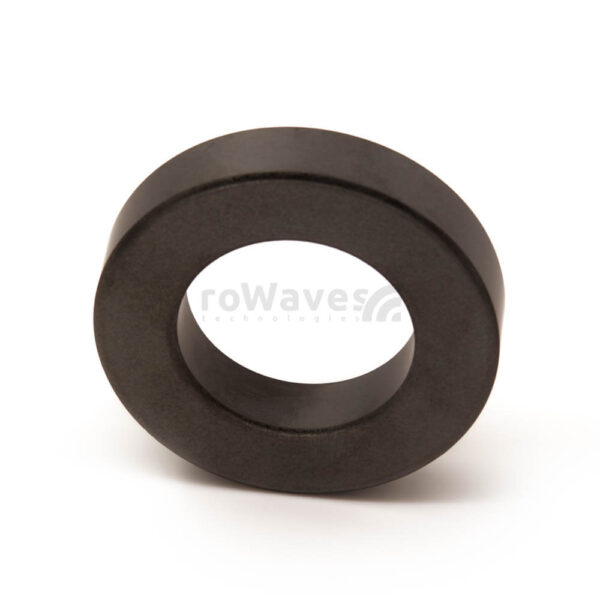

FT240 77 Amidon ferrite toroid 5977003801 front
  1. FT240 77 Amidon ferrite toroid 5977003801
  2. FT240 77 Amidon ferrite toroid 5977003801 front

FT240-77 ferrite ferrite toroid



Manufacturer
roWaves SKUFT-43
Comercial codeFT240-77
Manufacturer code5977003801
roWaves marking code2 x blue paint side-stripes
AL2590nH ± 25%
Permeability (μi)2000
Frequency range0.1 – 10MHz (wideband transformer, depends on the application)
Maximum RF power100-200W (2-30MHz Bal-Un transformer)
Curie temperature>200°C
Material number77
Inside diameter (ID)35.5mm
Outside diameter (OD)61mm
Height12.7mm
Material color codeblack/grey
View DatasheetAdobe

19,62 EUR (excl. VAT)

WishlistWishlist

22 in stock

Usable frequency ranges, depending on the application:

1:1 transformers (BalUn): 0.5 – 8MHz

RFI / EMI / CMC suppression: 100KHz to 10MHz

Weight 107 g
Dimensions 6,1 × 3,55 × 1,27 cm
