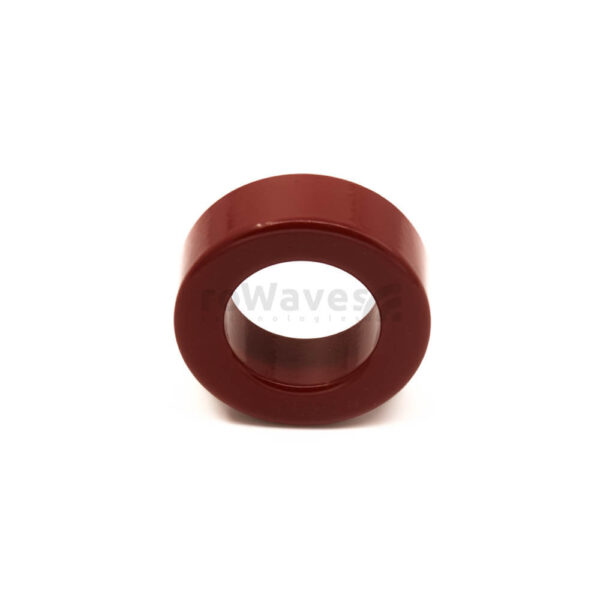

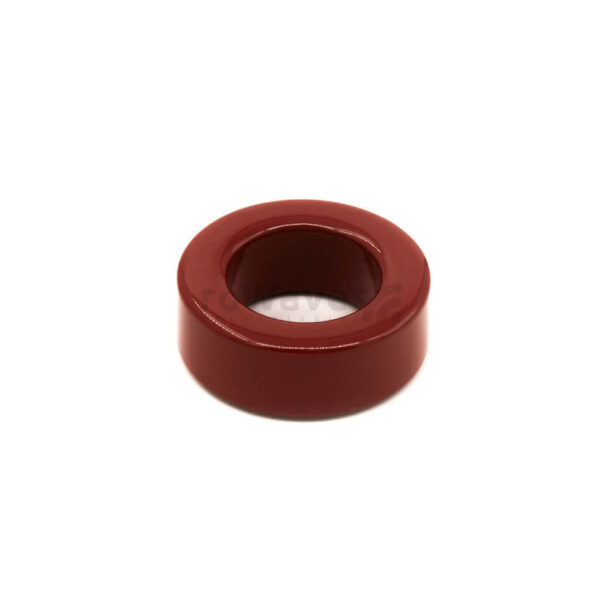

T157-2 iron powder toroid core

ManufacturerWurth Elektronik
roWaves SKUIPT-15
Manufacturer codeT157-2
Color codered/clear
Material number#2
Material mixCarbonyl Iron Mix
Permeability (µi)10
AL140µH / 100T
Usable frequency domain250KHz-10MHz
Max. RF power400W, LPF, max. 30°C temp. increase
Temperature stability95ppm /°C
Outer diameter (OD)39.9mm / 1.57in
Internal diameter (ID)24.1mm / 0.95in
Height (Ht)14.5mm / 0.57in
View DatasheetAdobe

7,60 EUR (excl. VAT)

27 in stock

– optimal for tuned circuits, coils, BPF and LPF filters, RF transformers etc.

Weight 58 g
Dimensions 1,75 × 0,94 × 0,48 cm
