JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner

Price range: € 32,00 through € 38,00 (excl. VAT)

1 in stock

Select options This product has multiple variants. The options may be chosen on the product page
🔍
JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
  1. JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
  2. JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner
  3. JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner

JUMA SC-2 | 3dB | 100MHz Power Divider / Combiner

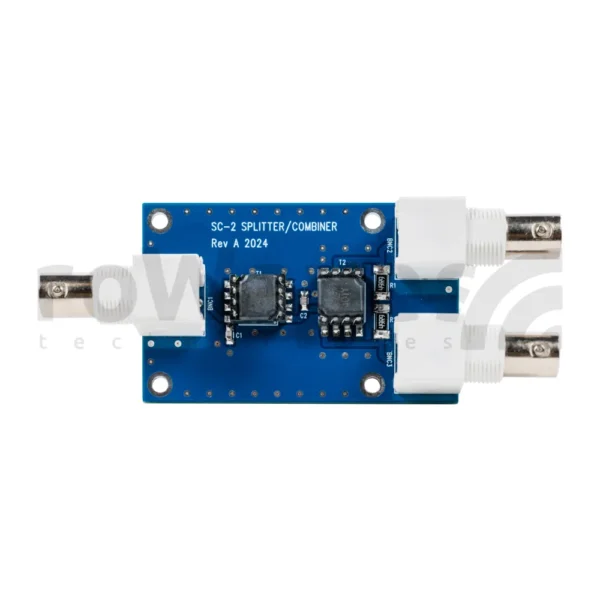

JUMA SC-2 is a 100KHz to 100MHz power splitter / combiner useful for HF receivers testing (sharing same antenna for two receivers for e.g.) or for combining /splitting test CW signals in IMD performance amplifier testing. There are two power variants available: 25W and 50W. In pictures on the left, there is the 25W listed.

* for specific SC-2 model, see datasheet  (in progress…). Variants:
SC-2-X  – 25W variant
SC-2-XD – 50W variant

Price range: € 32,00 through € 38,00 (excl. VAT)

Qty.
Price
1 - 2 pcs.
€ 32,00
3 - 4 pcs.
€ 29,50
5+ pcs.
€ 27,00
ParameterSC-2-X (25W)SC-2-XD (50W)
Download Datasheet
in work....
Download Mechanical Drawing
Adobe
Download Product Brochure
in work....
Freq. Ranges100KHz to 100MHz100KHz to 100MHz
Architecture2 Way-0°, 50Ω2 Way-0°, 50Ω
Max. Power25W50W
Impedance50Ω50Ω
Insertion Loss above 3dBmax. 0.6dB@100MHzmax. 0.35@100MHz
Port-to-Port isolation 0.1...100MHzbetter than> 24dBbetter than> 33dB

Fig.1 – 25W VERSION: P-to-P isolation (S21)> 24dB (0.1-100MHz) | RL (S11&S22) > 20dB (0.1 – 100MHz)

Isolation S21 25W P01 S11S22 RL

Fig.2 – 50W VERSION: P-to-P isolation (S21)> 30dB (0.1-100MHz) | RL (S11&S22) > 20dB (0.1 – 100MHz)

Isolation S21 50W P01D S11S22 RL

Weight 200 g
Dimensions 10 × 7 × 3 cm
