12V/5Adc PSU option PA1000+

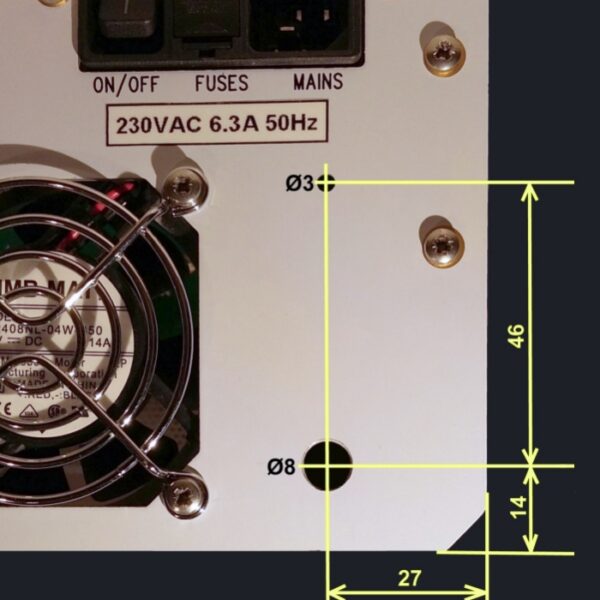

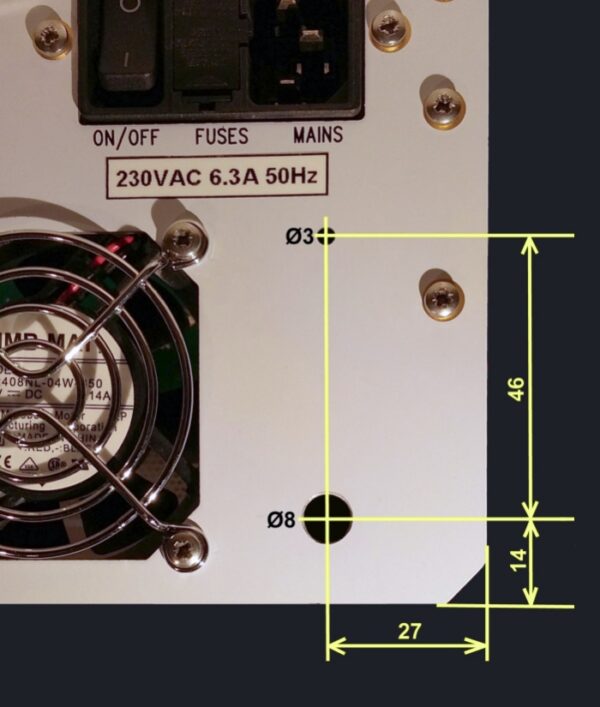

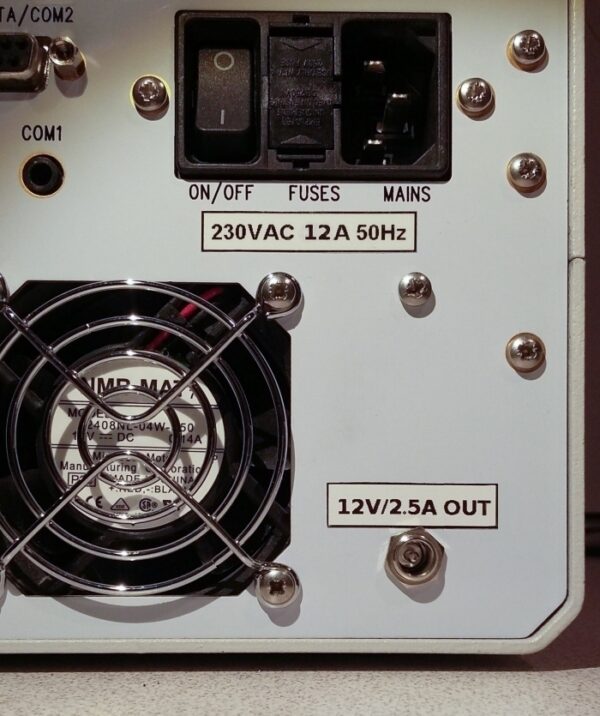

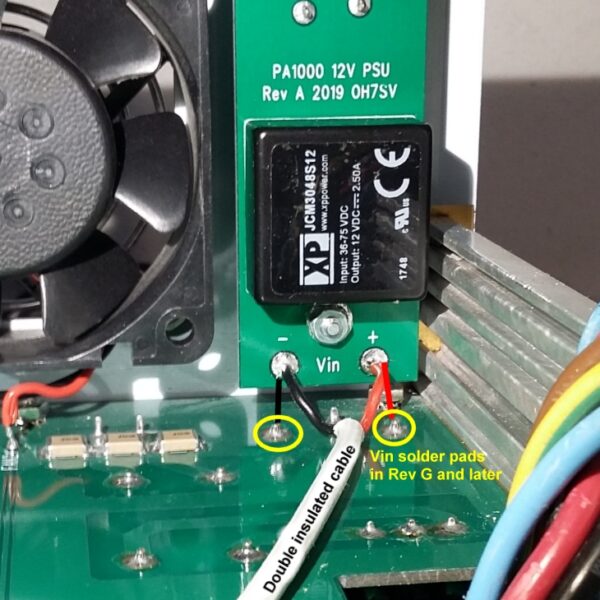

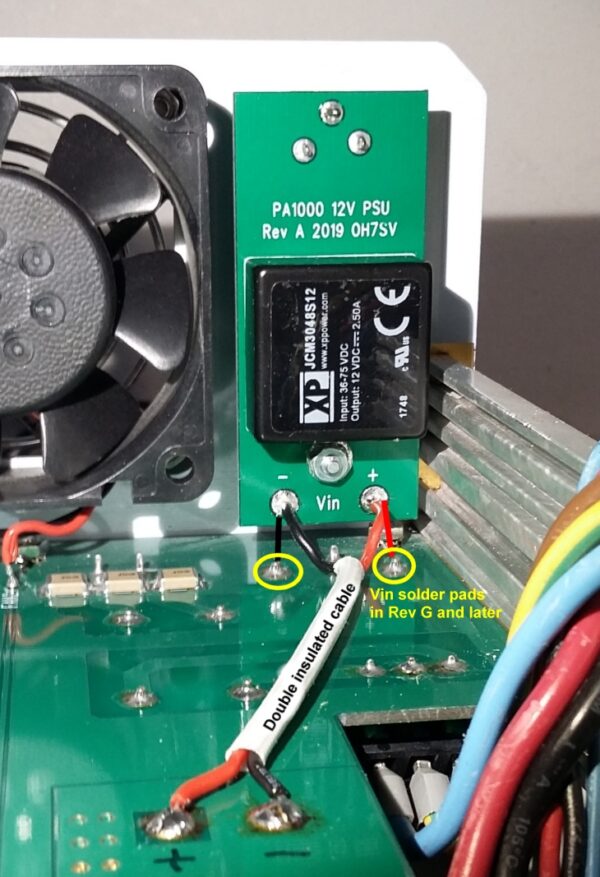

This 12V/5A out PSU option is intended for low power transceivers like KX3 and similar. With this option you don’t need to carry an extra power supply for your transceiver. Please check the current consumption of your transceiver max 5A. The output is over current limited (+25%) and it can stand continuous short circuit. You can install by yourself this module (if you have a previously bought old version of PA1000) by following pics from the gallery on the left side.

Main features:

• DC jack connector: 2.1mm male jack, for panel mounting
• DC female plug connector needed: PC-2.1/5.5K-14 (5.5mm(OD)/2.1mm(ID)
• output voltage: 12Vdc
• output current: ~5Adc

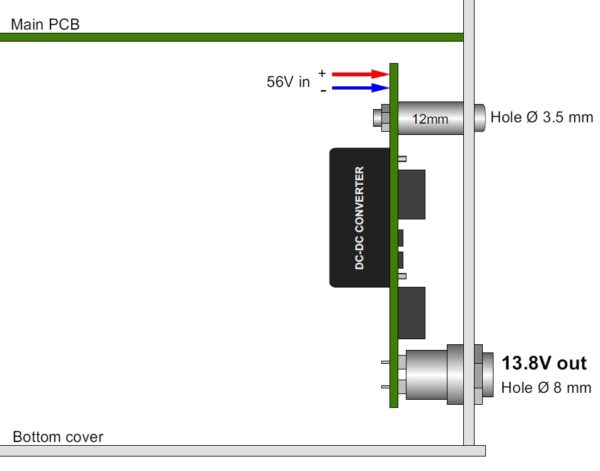

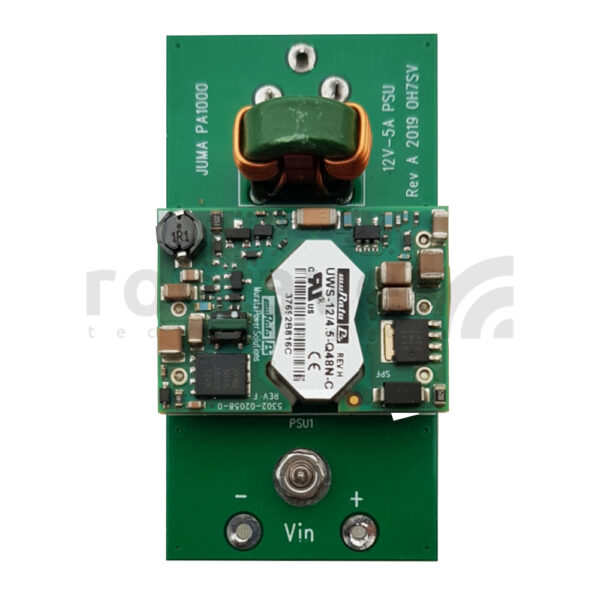

• architecture: SMPS high-efficient (91%) power supply (Murata Power Solutions isolated DC/DC converter inside)
• DC/DC converter line regulation: 0.13%
• output power: 54W max.

Deliveries starting March, 3rd, 2024.
