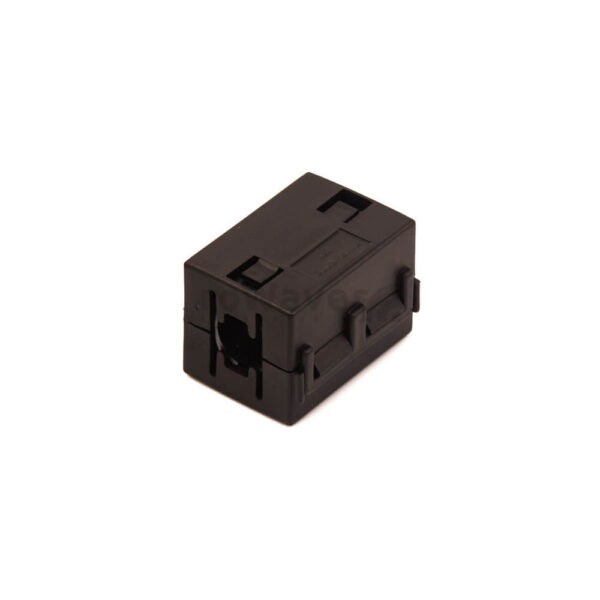

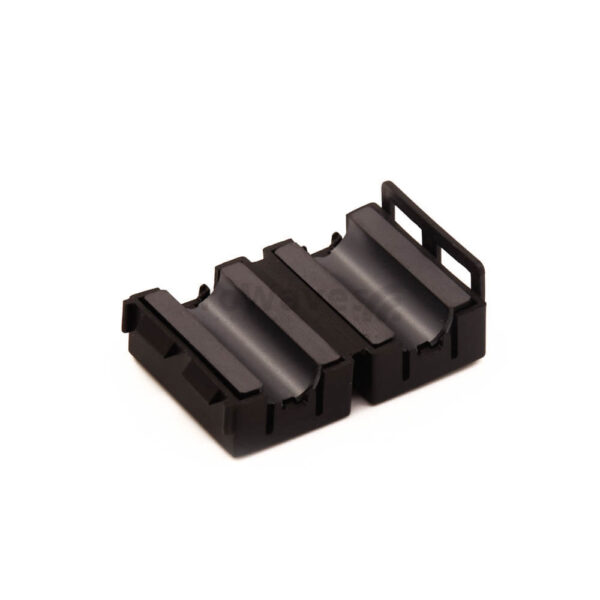

FC43-167251 ferrite clamp-on

ManufacturerWurth Elektronik
roWaves SKUFT-42
Manufacturer code0443167251
Color codeblack
Material number43
Initial permeability (µi)800
Impedance87Ω@10MHz / 134@25MHz / 210Ω@100MHz / 246Ω@250MHz
Usable frequency domain25 – 300MHz (EMI/RFI supression)
Suitable for coax.RG8X/CNT240/LMR240/H155 & 240 6mm diam. series
Max. coax. diam.up to 10mm diam.
Length32.3mm
Ext. width22.1mm
Ext. height (Ht)11mm
Int. diameter10.15mm
View DatasheetAdobe

4,98 EUR (excl. VAT)

10 in stock

* Toroids are tested for AL values at 10KHz.

43 Material – specifications:

ParameterSymbolValueUnits
Initial permeabilityµi800
Flux density @ field strengthB
H
2900
10
Gauss
Oersted
Residual flux densityBr1300Gauss
Coercive forceHc0.45Oersted
Loss factor @ specific freq.Tan δ/ µi250
1.0
10^-6
MHz
Temperature coefficient of initial permeability (20 -70°C)1.25%/°C
Curie temperatureTc>130°C
Resistivityρ1×10^5ohm-cm



Very effective at suppressing common mode noise in the 1 to 30MHz region if the cable to be suppressed can be wound through the core a number of times. Ideal for use on RG8X, CNT240, and 240 series cables.

Usable frequency ranges, depending on the application:

RFI / EMI / CMC suppression: 25-300 MHz

Weight 42 g
Dimensions 3,3 × 2,4 × 2,4 cm
