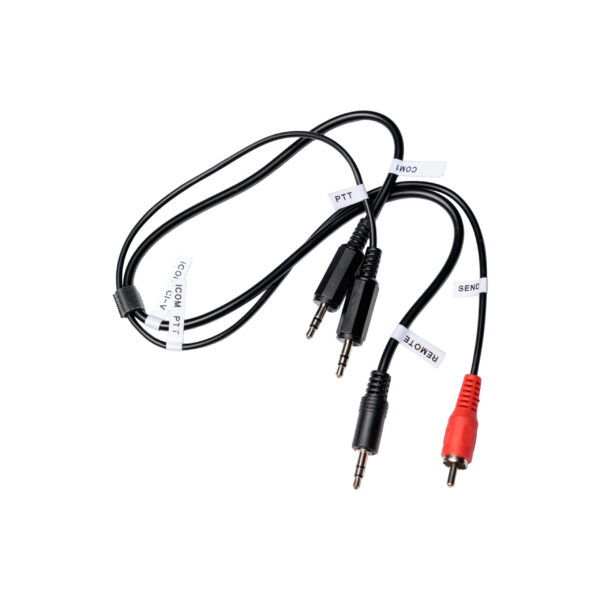

PA1000+ to ICOM CI-V cable (ROW-CA22)

These cables interconnects the JUMA PA1000+ amplifier with ICOM transceivers via CI-V, with digital band switch. A change of the band in the TRX automatically changes the band in the PA1000+, via this cable assembly (there are two-2 cables, one for band data, one for PTT)

Technical details:

• Color code: black (depends on the availability)
• ROWAVES code: ROW-CA22
• Ordering code: ROW-CA22
• Length: 0.5-0.75m usually, with labels at each end
• Connectors: BAND DATA cable – plug 3.5mm 3 pins male at PA1000+ end (COM1), plug 3.5mm 3 pins at ICOM TRx end (REMOTE)
• Connectors (PTT cable): plug 3.5mm 3 pins male at PA1000+ end (PTT), RCA 2 pins male s at ICOM TRx end (SEND)
• Interconnects with: All ICOM transceivers (IC7300, IC756 etc.)
