RMAT-1001 – 500MHz, 30dB Toggle Switch Attenuator

0-30dB 6 step toggle switch 2W attenuator, for laboratory usage and not only. Deisgned with robustness in mind, it features a 0.4dB typ. insertion loss , 0.4db typ. accuracy, with excellent return loss.

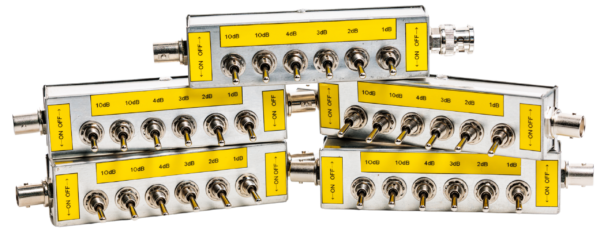

RMAT 1001 bo bg rowaves all

0 to 30dB Toggle Switch Step Attenuator designed for laboratory measurements and general testing purposes. Equipped with 2 x BNC-F, BNC-F/BNC-M, 2 x SMA-F or SMA-F/SMA-M connectors, there are 4 variants to choose from. This RF attenuator is manufactured to precisely meet the RF industry requirements, with quality connectors and toggle switches. Minimum attenuation is 0dB, maximum attenuation is 30dB in 6 steps. Maximum VSWR is 1.5:1 @ 450MHz/9dB selected attenuation (4+3+2dB). Maximum rated power is 2W.

30dB Toggle Switch Step Attenuator Key Specifications:
View DatasheetAdobe
View Mechanical DrawingAdobe
ManufacturerroWaves
roWaves SKURMAT-1001XXX
Designstep
Maximum Frequency500MHz
Impedance50Ohm
Maximum Power2W
VSWR Maximum1.5:1
Minimum Attenuation0dB
Maximum Attenuation30dB
Options (choose before adding to cart):

RMAT-1001BMF – connector 1: BNC-male | connector 2: BNC-female
RMAT-1001BFF – connector 1: BNC-female | connector 2: BNC-female
RMAT-1001SMF – connector 1: SMA-male | connector 2: SMA-female
RMAT-1001SFF – connector 1: SMA-female | connector 2: SMA-female

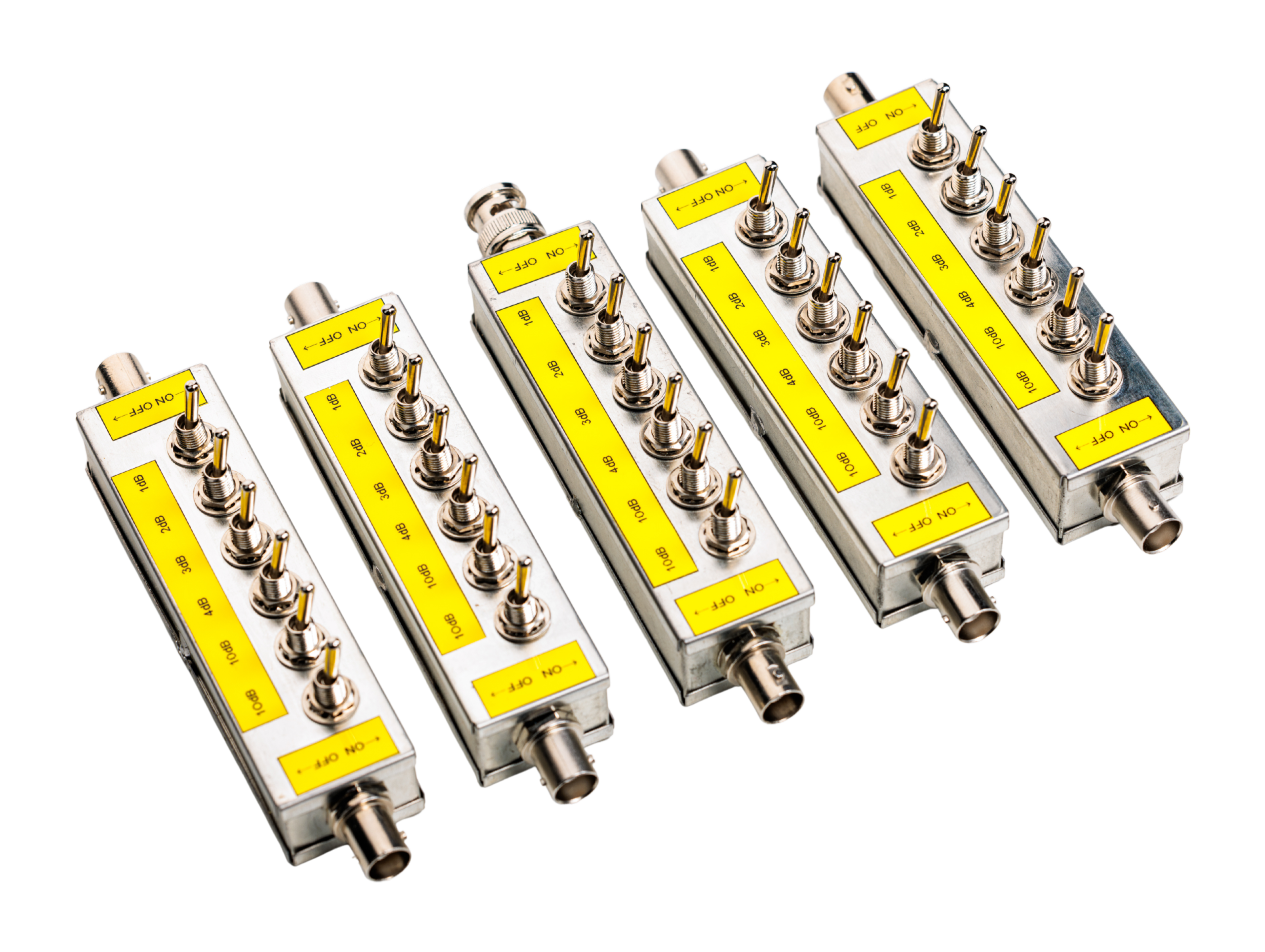

RMAT 1001 bo bg rowaves
Read More Here
