RTLFP-520(E) – 25W Low Pass Filter
5th order laboratory low pass filter, completely shielded, for D.C. to 52MHz with typ. insertion loss 0.15dB, -33dB typ. RL and 0.65dB typ. pass band ripple.

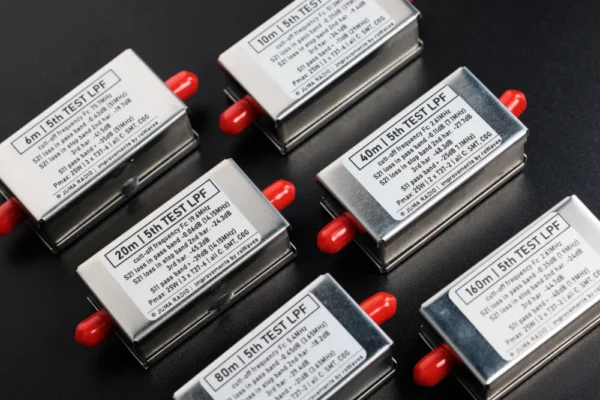

The RTLPF-520(E)-xxx Low Pass Filter is designed for both RF engineering laboratory measurements / test and / or hobby applications like amplifier testing, or attenuating high-frequency out-of-band harmonics etc. Small-size, available as complete unit enclosed, or just as simple module (not enclosed), both versions are equipped with SMA-F connectors. This series of 5th Order LPFs are ideal for laboratory measurements where plug-and-play and high reliability is needed. It can be purchased unit-by-unit or as complete set (sets will be available soon). See Key Specifications below and Datasheets at “Description” tab, down below:
| Download Datasheet | see DESCRIPTION tab below | |
| Download Mechanical Drawing |  | |
| Download Product Brochure | | |
| Architecture | 5th Order LPF, Chebyshev | |
| Max. Power | 25W | |
| Impedance | 50Ω | |
| Insertion Loss | 0.15dB typ. | |
| Return Loss | -33dB typ. | |
| Passband Ripple | 0.65dB typ. | |
| Freq. Ranges | D.C. to 52MHz* |
* for specific LPF models, see datasheet below
RTLPF-520(E)-xxx – enclosed version, where xxx can be 160m/80/30/20/10/6m
RTLPF-520-xxx – version without enclosure, where xxx can be 160m/80/30/20/10/6m
